How to Install KYB Gas-A-Simply Quad Shock on Your 1994-2004 GT, V6, Mach 1 or 1994-1998 Cobra

Installation Time

30 minutes

Tools Required

• Floor Jack
• 2 Jack stands
• 15mm socket
• 18mm socket
• Ratchet
• Ratchet extension
• WD-40

Shop Parts in this Guide

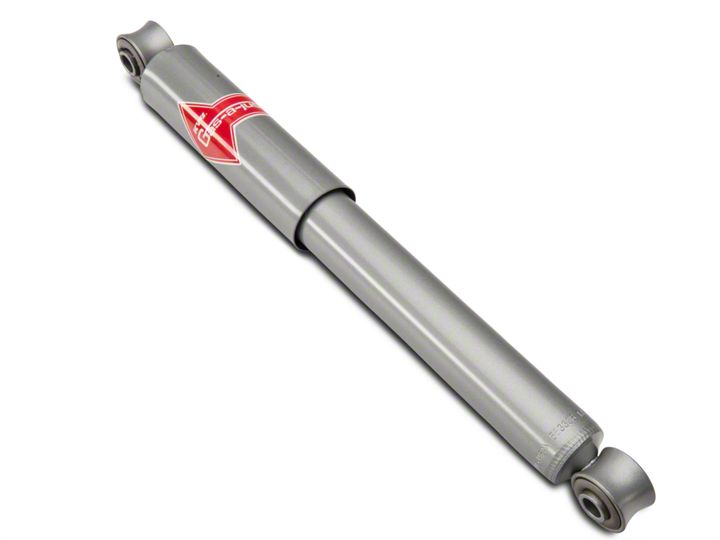

• Gas-A-But Quad Stupor (84-04 GT, V6, Mach 1; 94-98 Cobra)

Installation

Removal of stock quad shocks:

ane. Park the vehicle on a difficult flat surface and engage the parking brake. If y'all take a transmission transmission, place the shifter into beginning gear. Brimming the front tires so that they will not move when you lot are jacking upward the rear of the vehicle. See motion picture below.

two. Loosen the lug nuts on both of the rear wheels.

three. Place the floor jack under the rear differential and raise information technology high enough for the wheels to come off the basis. Advisedly place the jack stands under the axle, one on each side of the differential. Then slowly lower the car onto the jack stands.

4. Later on the car is resting on the jack stands, you lot tin can and then lower the floor jack to just barely bear on the rear differential to use as an extra back up in case a jack stand fails. Run across the following two pictures.

5. At present take the back wheels & tires off and set them aside.

half-dozen. Next, spray the nuts and bolts that secure the stock quad shocks with WD-40. After letting them soak for a little while, use the 18mm socket to take the nut off the quad daze stop that is facing the front end of the automobile.

7. The nut on the quad shock stop facing the dorsum of the car is welded on and cannot exist removed. You have to remove the bolt from the back side using a 15mm socket.

eight. Echo same process for both quad shocks.

Installation of KYB Quad Shocks:

one. After removing the sometime quad shocks, spray some WD-xl on the bolts and nuts to forbid them from rusting.

2. Yous can at present take the new shocks out of the packaging. The shocks are nether extreme pressure level and then I recommend leaving the plastic retainers on the shocks until you are ready to commodities them on.

iii. With the plastic retainer withal on, place the back end of the shock on and slide the 15mm bolt in that secures information technology. The back end is the bigger cease of the shock; as well has the KYB decal on it.

four. Once that end is secured, cut the plastic retainer so the shock tube can extend to the mounting mail. When you cutting the plastic, have ane hand holding the shock in then information technology does not wing out.

5. Place both hands on the daze and connect to the mounting postal service. Use the stock 18mm nut and tighten downwards. Caution: The shock is extremely strong and y'all will take to exist very cautious with it.

six. Echo aforementioned process for both Quad Shocks.

7. Now, torque the nut and the bolts down tightly. So reinstall your wheels and tires.

8. Raise the motorcar up with the flooring jack, carefully remove the jack stands and slowly lower the machine.

Enjoy your new Quad Shocks!

Installation Instructions written by AmericanMuscle customer Chris Dye 10.5.xi
